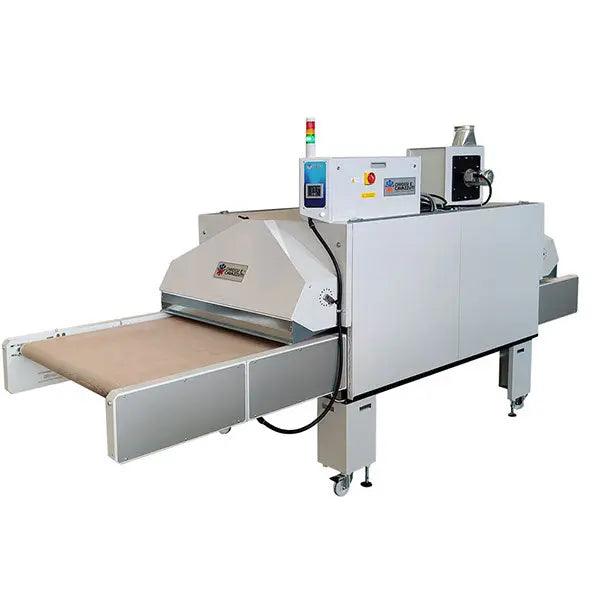

Cavazutti Dual 1200 Dryer Elec1 Belt.1 Return Belt 220v, 3phz

Limited Availability
$20,479.50
SKU CC-1390052

Specifically designed to cure all water base and plastisol inks for screen printing and direct to garment.

Overview

You will need to get a shipping quote on this item to purchase online. Please live chat with us to get shipping charges.

The Tetris gamma is a new generation of conveyor dryers, built and designed with almost 40 years of experience for long lasting and high quality machines, proudly produced in Italy. Specifically designed to cure and dry DTG printing on fabrics, the massive advantage of these dryers is the high volume of forced air circulation.

The massive advantage of these dryers is the high volume of forced air circulation: this facilitates and accelerates the evaporation of water-based digital inks with unmatched results on the finished garment in medium-long drying process. Dries DTG prints from Epson SureColor F2100, Epson Surecolor F3070 Industrial Direct to Garment printer, Brother GTX pro, Kornit, Aeoon, and more

The ACE 950 is the perfect match with an Epson SureColor F3070, Brother GTX Pro, KORNIT STORM 1000, or HEXA, which has an output of up to 170 light and 85 dark garments per hour.

Specifications
Technical Data
Ace 950 | Dual 1200
Electrical requirements
400V 3phase (108V/230V 3 phase optional) | 400V 3phase (108V/230V 3 phase optional)
Power consumption
14kW-20A | 19kW-29A
Max temperature
356 F | 356F
Exhaust specification
180 m³/h - Ø 150 mm | 180 m³/h - Ø 150 mm
Tunnel length
78.75" | 78.75"
Belt Width
37.4" | 47.25"
Production (light-dark)
160-100 pieces per hour | 240-160 pieces per hour
Dimension (LxWxH)
149.6"x49.2"x88.6" | 161.4"x 59.02" x 88.6"
Shipping Weight
1433 lbs | 1719 lbs.
Data Sheets
