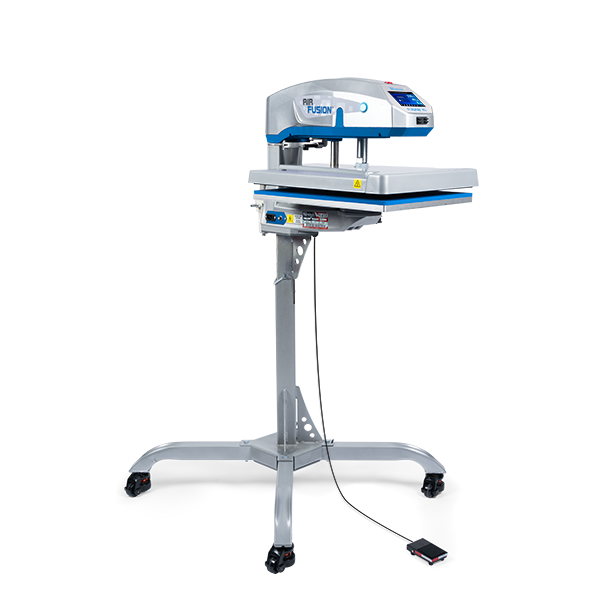

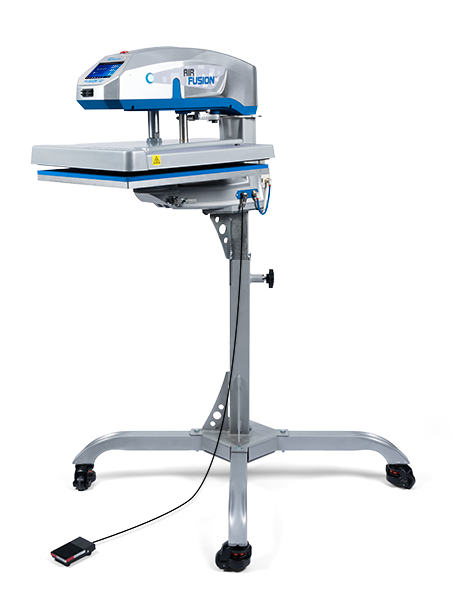

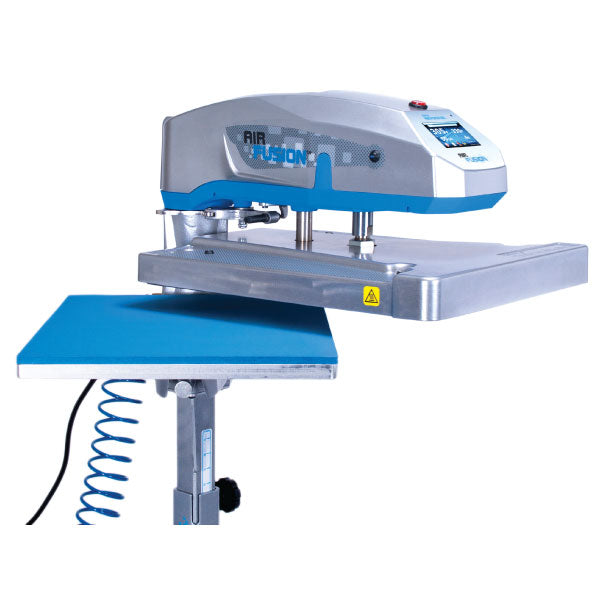

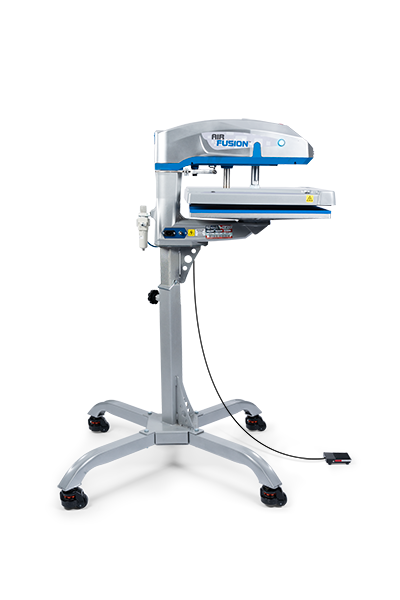

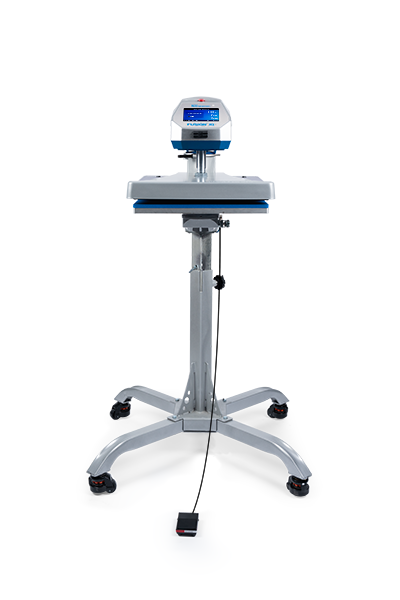

Stahls Air Fusion IQ Pedastal Heat Press 16" x 20"
Limited Availability
$5,495.00
SKU SH-XRF
The world’s most advanced heat press just got smarter.
Overview
Register your Air Fusion and access the Hotronix Online Portal to manage users, generate usage reports, and troubleshoot issues. Plus, a brand-new controller with a larger, higher resolution screen makes it easier than ever to modify settings and save recipes.
Additional Features
Hotronix Premier Warranty
Features
▼
- Air power reduces operator fatigue in high-volume shops
- Hands-free auto-swing creates a heat-free workspace
- Available in Pedestal and Table Top models
- Powered by an air compressor (not included)
- Online access to reporting, including total impressions, active/idle time, and average cycle time.
- Self-diagnostics help with troubleshooting and maintenance.
- 16" x 20" upper platen.
- Stores hundreds of application settings.
- Adjustable stand creates an ergonomic workspace for multiple users.
- Threadability™ increases production – load garments once and easily rotate from front to back.
- Exclusive Touch Screen Controller with new Multi-swipe gestures.
- Data interface port for software upgrades.
- Live digital time, temperature, and pressure readout.
- Energy-saving 4 hr sleep mode.
- Production cycle counter.
- UL/ULC/CE/RoHS compliant.
- Electrical Options:
120 v; 15 amps; 1800 w
240 v; 15 amps; 3500 w - Must have designated circuit breaker
- 3/4 inch heat platen with fast recovering heater technology.
- Die pressure cast 356 aluminum corrosion-free framework.
- Proudly made in the USA.
- Premier warranty.
- Actual Weight: 152 lbs
- Shipping Weight: 245 lbs
- Dimensions: 40" x 32" x 57"
- Shipping Dimensions: 40" x 48" x 58"
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
Data Sheets
▼
