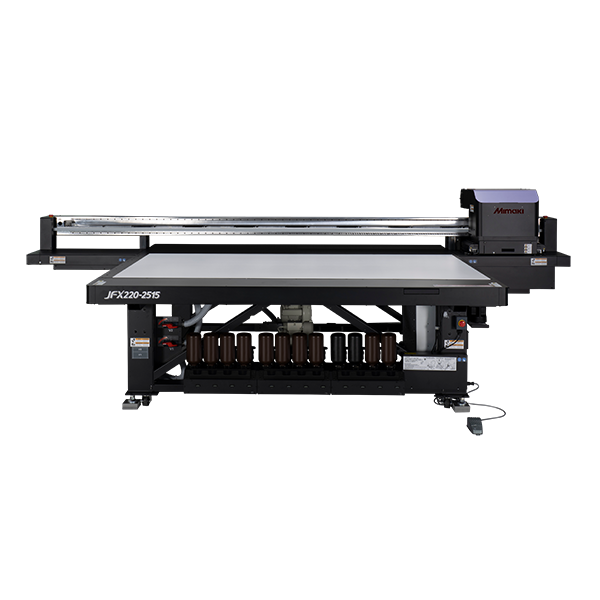

Mimaki JFX220-2515 Large Flatbed UV Printer

• Intelligent vacuum system automatically concentrates suction beneath positioned media.
• Reduces the need for manual masking and taping.
• Improves substrate stability during printing.
• Helps minimize setup time between jobs.
• Supports efficient handling of different material sizes.

• Four staggered on-demand piezoelectric printheads.
• Maximum print resolution of 1200 dpi.
• Produces sharp graphics, fine details, and smooth color gradients.
• UV-LED curing supports direct printing onto compatible substrates.
• Ideal for high-quality commercial and industrial graphics.

• Maximum printable area of 98.4" × 59.1".
• Accommodates materials up to 4" thick.
• Supports large signage panels and specialty applications.
• Provides flexibility for short-run and production printing.

• Retractable registration pins simplify substrate alignment.
• Touchscreen-controlled positioning improves setup convenience.
• Helps maintain consistent placement for repeat printing.
• Reduces manual adjustments during production.

• Compatible with Mimaki ELH-100 rigid UV-curable inks.
• Supports ELS-120 flexible UV-curable inks.
• Optional fluorescent Pink and Yellow inks expand creative possibilities.
• White and Clear ink options enable specialty printing effects.
• PR-200 Primer supports printing on selected substrates.

• Supports layered ink applications for dimensional effects.
• Clear ink enables gloss accents and textured finishes.
• White ink supports printing on transparent and dark materials.
• Fluorescent ink options create eye-catching graphics.
• LD4 printing mode expands possibilities for uneven surfaces.

• Touchscreen interface simplifies printer operation.
• Automated media positioning improves workflow efficiency.
• Intelligent vacuum management reduces preparation requirements.
• Gigabit Ethernet connectivity supports production environments.
• Compatible with Mimaki RasterLink8 RIP software.

ANCHOR vacuum technology and automatic registration pins simplify material preparation, allowing operators to spend less time positioning substrates and more time printing.

The ability to print directly onto thick, rigid, and specialty materials allows businesses to expand beyond traditional signage into decorative panels, packaging, industrial applications, and customized products.

High-resolution printing and advanced UV-curable inks produce detailed graphics, smooth color transitions, and professional finishes suitable for demanding commercial applications.

White, Clear, Primer, and fluorescent ink options provide opportunities to create specialty effects, dimensional graphics, and unique printed products.

Automated positioning, intelligent vacuum management, and compatible RIP software help streamline production and reduce manual intervention.

With a large printing area and support for substrates up to 4" thick, the JFX220-2515 accommodates a broad range of materials and finished products.

• Indoor and outdoor signage
• Retail displays
• Point-of-purchase graphics
• Promotional signs
• Directional and informational signage

• Equipment panels
• Industrial labels and graphics
• Control panels
• Decorative industrial components
• Custom manufactured products

• Decorative wall panels
• Interior signage
• Custom furniture components
• Architectural panels
• Specialty decorative products

• Custom packaging
• Display packaging
• Promotional panels
• Branded merchandise
• Specialty product decoration

• Dimensional graphics
• Textured printing
• White ink underlays
• Clear gloss effects
• Fluorescent graphics
• Custom rigid-substrate printing

Ensure printing surfaces are clean, dry, and free of dust, oils, or contaminants before printing. Proper surface preparation helps promote consistent ink adhesion.

Position materials correctly on the print table to take advantage of the automatic vacuum system. Proper material placement helps maintain stability and improve registration.

Choose rigid or flexible UV-curable inks based on the substrate and application requirements. Verify material compatibility before beginning production.

Select print settings appropriate for the application. Higher-resolution modes are useful for fine graphics and detailed images, while production-oriented settings can improve throughput.

White ink can improve opacity on transparent or dark substrates, while Clear ink can create specialty gloss and dimensional effects.

Operate the printer within the manufacturer's recommended temperature and humidity ranges to support consistent printing performance.

Follow Mimaki's recommended maintenance procedures, including nozzle checks, printhead cleaning, and inspection of the ink delivery system.

Before printing full production runs, verify ink adhesion, curing performance, and print quality on unfamiliar substrates.
