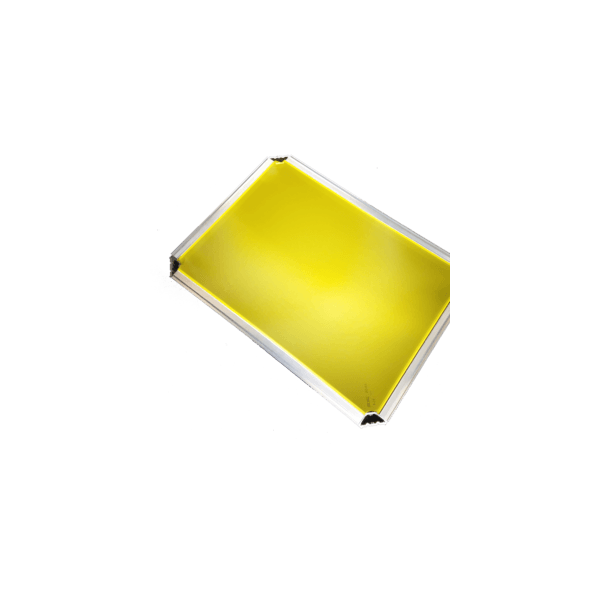

Shur-Loc Mesh Panel M3 23" x 31" - 175 Yellow All Round
Professional pre-cut 175-count yellow screen printing mesh panel designed for 23" x 31" Shur-Loc M3 modular frames, providing consistent tension, dependable registration, and versatile production performance.
Characteristics
The Shur-Loc Mesh Panel M3 23" x 31" – 175 Yellow All Round is a professional-grade replacement mesh panel designed for use with compatible Shur-Loc M3 23" x 31" modular screen printing frames. The pre-cut panel helps simplify screen preparation by providing mesh specifically configured for the M3 frame system.
Featuring a 175 mesh count, this panel provides a useful balance between image detail and ink deposit. It is well suited for general textile screen printing applications requiring finer detail than lower mesh counts while still maintaining practical ink flow.
The yellow-dyed mesh helps reduce light scattering during exposure, supporting sharper stencil definition and improved reproduction of fine artwork. This makes the 175-count mesh a versatile option for detailed spot-color graphics, smaller text, halftones, and other production work requiring controlled ink deposits.
The All Round configuration is designed as part of the Shur-Loc modular panel system, allowing printers to replace mesh panels without purchasing an entirely new frame. When properly installed and tensioned, the system provides a stable printing surface for consistent registration and repeatable production.
- 175 mesh count provides a balance of detail and controlled ink deposit
- Yellow-dyed mesh helps minimize light scattering during screen exposure
- Designed for Shur-Loc M3 23" x 31" frames
- All Round panel configuration
- Pre-cut mesh panel simplifies frame preparation
- Supports consistent screen tension when properly installed
- Suitable for detailed textile screen printing
- Helps produce clean edges, smaller text, and finer artwork
- Suitable for halftones and detailed spot-color graphics
- Provides controlled ink deposits for production printing
- Replaceable panel design can extend the usable life of compatible modular frames
- Suitable for manual and automatic screen printing applications
- Designed for professional production environments
- Install the mesh panel according to the recommended procedure for the compatible Shur-Loc M3 frame system.
- Verify that the panel is properly seated and evenly tensioned before coating the screen with emulsion.
- The 175 yellow mesh is a strong general-purpose choice when artwork requires more detail and a lighter ink deposit than lower mesh counts provide.
- Use for detailed spot-color work, smaller lettering, halftones, and designs where controlled ink coverage is important.
- Select the appropriate emulsion and coating technique according to the mesh count, artwork, and desired stencil thickness.
- Optimize exposure settings for the yellow mesh, emulsion, coating technique, and exposure equipment being used.
- Select squeegee parameters and ink viscosity according to the artwork, substrate, and desired ink deposit.
- Check screen tension periodically to maintain consistent registration and print quality throughout production.
- Inspect the mesh panel for damage or loss of tension before returning reclaimed screens to production.
- General-purpose textile screen printing
- Detailed spot-color graphics
- Moderately detailed artwork
- Smaller text and lettering
- Logos and detailed garment graphics
- Halftones
- Controlled ink deposits
- Applications requiring finer detail than lower mesh counts
- Manual screen printing
- Automatic screen printing
- Professional production environments
- Printers using reusable Shur-Loc M3 modular frame systems
