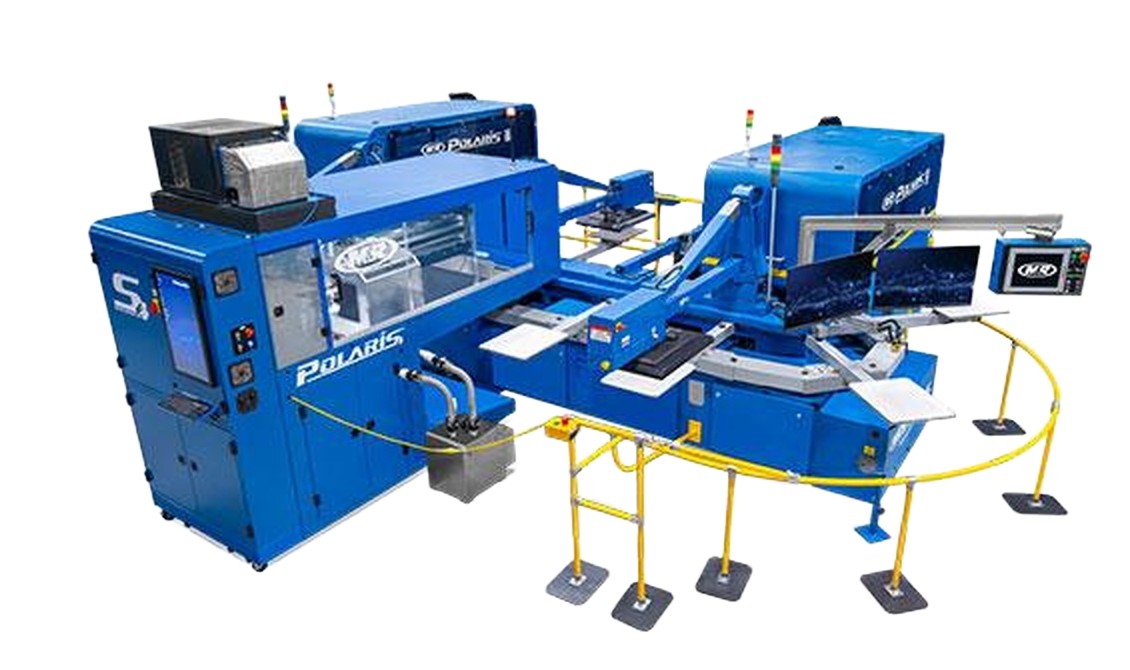

M&R Polaris S4 Industrial DTG Platform

Name: M&R Polaris S4 Industrial DTG Platform
Brand: M&R

The Polaris S4 builds direct-to-garment printing into a production line. It runs on M&R's Stryker oval base with a servo-drive indexer, pretreats each shirt in-line with the S4 digital pretreater, flattens and preheats it with onboard heat presses and flashes, then prints white and CMYK on two dedicated digital print units.

Pretreat goes down only behind the print, the barcode-driven workflow pulls each job from your order system, and there is no stack of pretreated shirts waiting to dry. Every Polaris is quoted and configured for your shop, so request a quote and an SPSI equipment specialist will follow up.

Request a quote Brochure & specs

What the Polaris S4 does

Built on the M&R Stryker oval base with a servo-drive indexer
In-line S4 digital pretreat: no stack of pretreated shirts
Onboard heat presses and flashes smooth fibers before printing
Dual digital print units: one White, one CMYK
Up to 600 x 2400 dpi, 1,280 nozzles per head
Barcode scanner + RESTful API to your order system or ERP
Caldera RIP and Polaris Dashboard with recipe management
TucLoc platens: no spray tack, no clamshell

S4 digital pretreat

Pretreat "shape for shape", only where you print

The S4 pretreater sprays chemistry only directly behind the image, so there's less boxing and staining and less chemistry used. Density, fade, feather, choke and spread are set per job in the recipe software, and narrow spray tips switch between light and dark shirt settings.

Inside the line

Pretreat, press, print

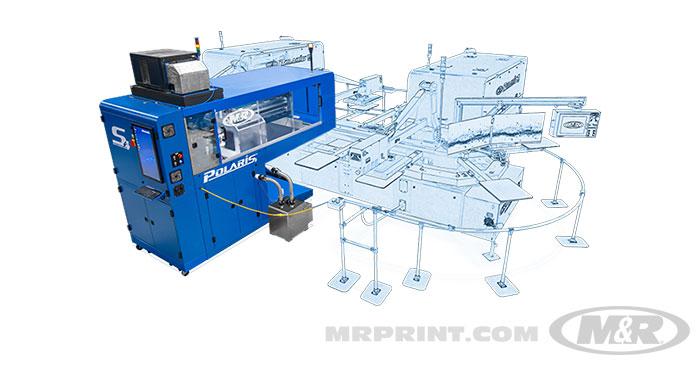

S4 onboard pretreater

Digital pretreat applied only behind the print, then dried before white ink goes down, so shirts move straight from loading to printing.

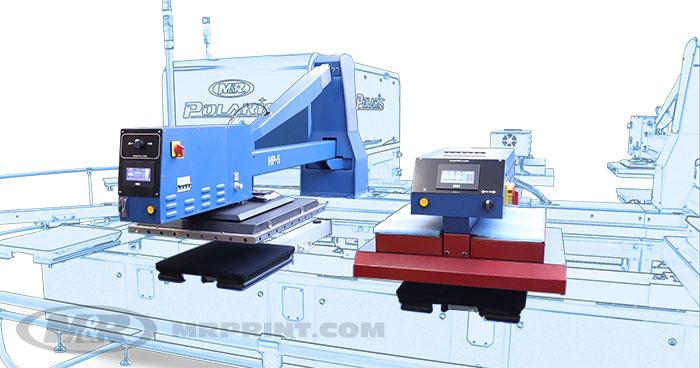

Heat presses and flashes

Onboard, digitally controlled heat presses flatten fibers and add residual heat; flashes cure the white before CMYK prints wet on dry.

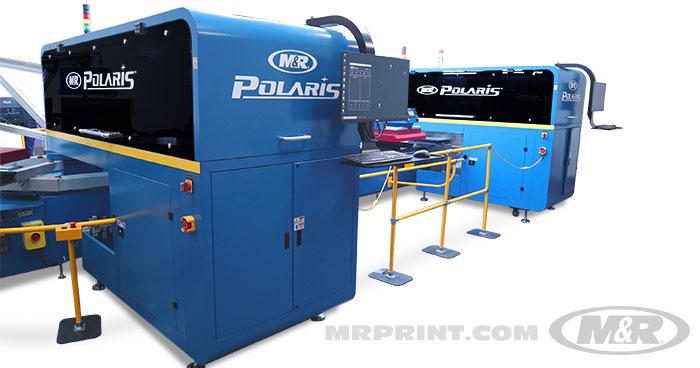

Dual digital print units

Sixteen industrial stainless-steel printheads for white and sixteen for CMYK, with variable drop size for smoother blends and a wider gamut.

Specifications & brochure

M&R Polaris S4 brochure (PDF)

Digital print units: One White, one CMYK
Printheads: 16 per station, industrial stainless steel; 1,280 nozzles per head
Resolution: 600 dpi native; up to 600 x 1200, 600 x 1800 and 600 x 2400
Max image area: 15" x 19" (38 x 48 cm)
Standard pallet: 15" x 19" (38 x 48 cm), TucLoc platens
Indexer: 16 stations, servo drive, clockwise or counterclockwise
Pretreat: S4 onboard digital pretreater, recipe-controlled
Ink system: Continuous recirculation; four 6-liter main tanks per print station
Software: Polaris Server: Caldera RIP, Polaris Dashboard, RESTful API
Electrical (press): 208/230 V, 3 ph, 158 A, 60 Hz, 63 kVA
Electrical (A/C + computer): 110 V, 1 ph, 60 A, 6.6 kVA (with two environmental rooms)
Air: 20 cfm @ 100 psi (566 l/min @ 6.7 bar)
Water: Filtered (not distilled) in, 3/8" tubing; drain or drain pump
Work room: 68-77 °F (20-25 °C), 50-70% humidity, non-condensing
Size (H x W x D): 114" x 344" x 275" (290 x 874 x 699 cm)
Shipping weight: 19,000 lb (8,620 kg)
Certification: CE certified, UL listed

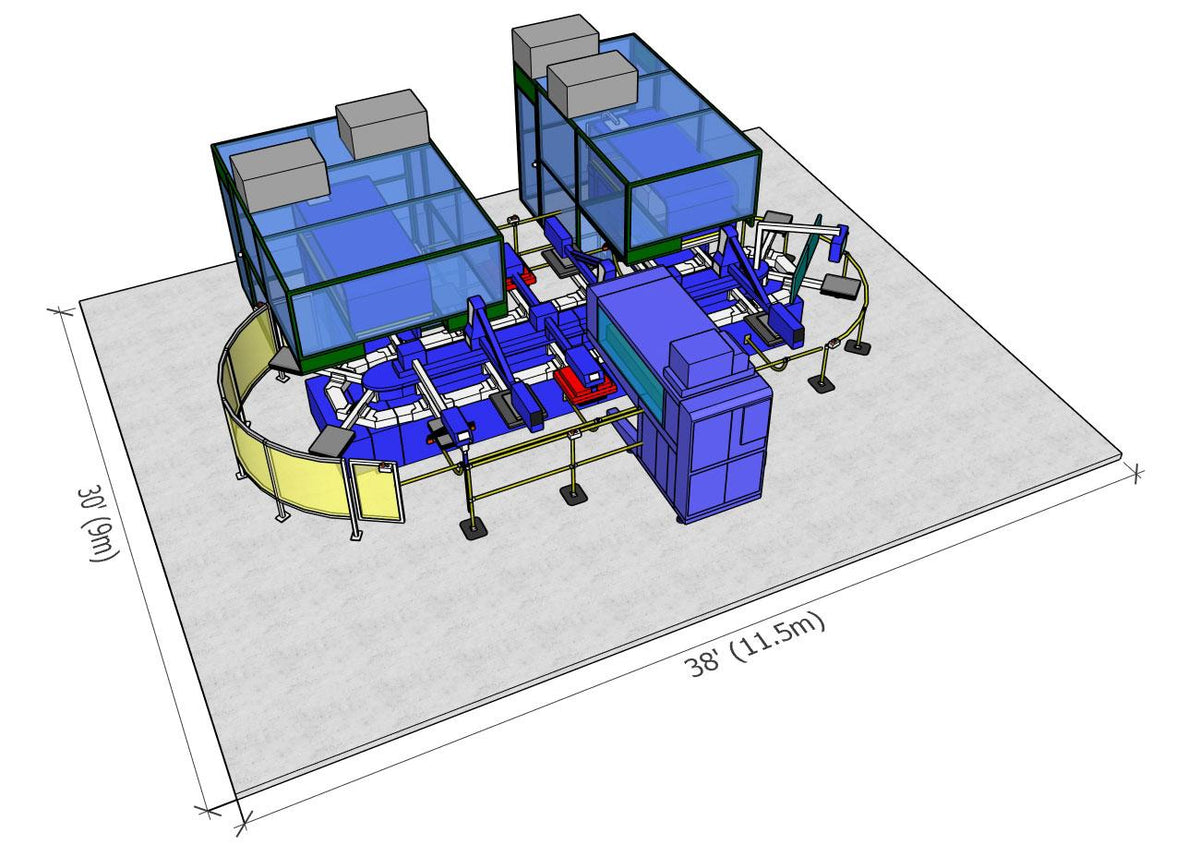

Floor plan: about 30' x 38' (9 x 11.5 m)

M&R Polaris S4 Industrial DTG Platform specifications

Request a Polaris S4 quote

Tell us about your DTG volume and your shop space, and an SPSI equipment specialist will follow up with M&R pricing, lead time, site requirements and installation.
